JSM-IT500 InTouchScope™ Scanning Electron Microscope

The JSM-IT500 is a new model of JEOL InTouchScope™ series.

Equipped with our sophisticated Analytical series, the JSM-IT500 facilitates any analyses from specimen loading to report generation.

3 key points  Fast and Easy Analysis!

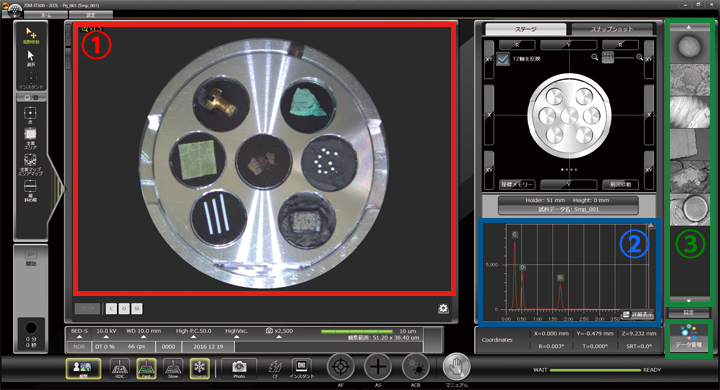

  1. Zeromag: the displayed Holder Graphics or CCD image enables you to locate the specimen area or specify analysis positions. You can rapidly search the specimen area and specify positions for multiple-field serial analysis.
  2. Live Analysis (Only for A/LA): with "Live Analysis", the embedded EDS system shows a real time EDS spectrum during image observation. Elemental composition or "Alert" for element of interest is displayed on a live image.
  3. Integrated data management software: this user-friendly software enables you to select and review SEM images and analysis results through the data management area. You can also generate a report with a single click.

Key point 1 : Zeromag for True Integration of Optical and SEM imaging

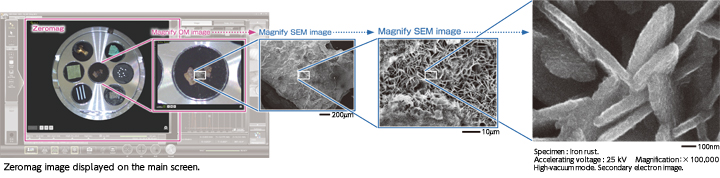

Smooth operation up to high magnification observation! "Zeromag" facilitates navigation with seamless transitioning from the optical CCD image to SEM image.

With Zeromag, automated simple large-area observation and EDS analysis can be made.

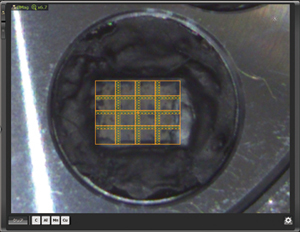

Montage setup with Zeromag.

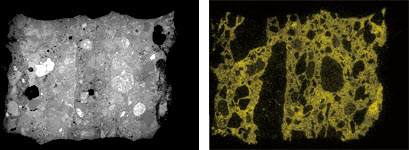

Montage result: 4 x 4 (Left: Backscattered electron composition image, Right: Ca map)

Specimen: Concrete.  Accelerating voltage: 15 kV
High-vacuum mode.  Area: Approx. 4 mm x 3 mm

With Zeromag, it is easy to set up one or more montage areas for imaging and analysis. “Montage” function is effective to acquire detailed information for identifying foreign materials over large areas.

Key point 2 : Live Analysis - Seamless SEM and EDS

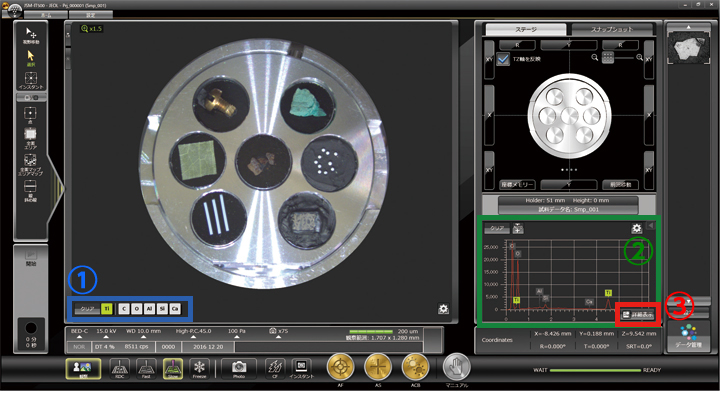

With our analytic series (Live Analysis), the EDS system shows a real time EDS spectrum during image observation. You will easily find elements of interest and unexpected elements.

  • The main elements existing in the measurement area are displayed. You can display “Alert” by specifying an element.
  • The characteristic X-ray spectrum from the analysis area and automatic qualitative analysis results are always displayed.
  • Single-click enables you to switch between the Electron microscope operation screen and analysis detail display screen.

Key point 3 : Integrated data management software SMILE VIEW™ Lab for Seamless report generation

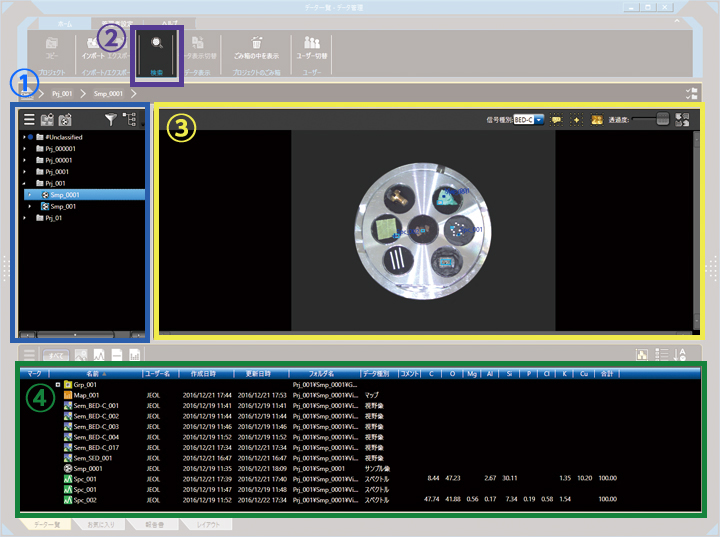

SMILE VIEW™ Lab is a fully integrated data management software which links the CCD image, SEM images, EDS analysis results and corresponding stage coordinates for fast report generation or re-call of specimen position for further study.

  • Names of each field are displayed.
  • Data search is enabled from specimen name, creation time, data type, etc.
  • Positions of each field are displayed on Holder Graphics or CCD image.
  • Data is displayed in list form, which includes analysis data, quantitative analysis results of elemental map, spectra, etc., in the selected fields.
